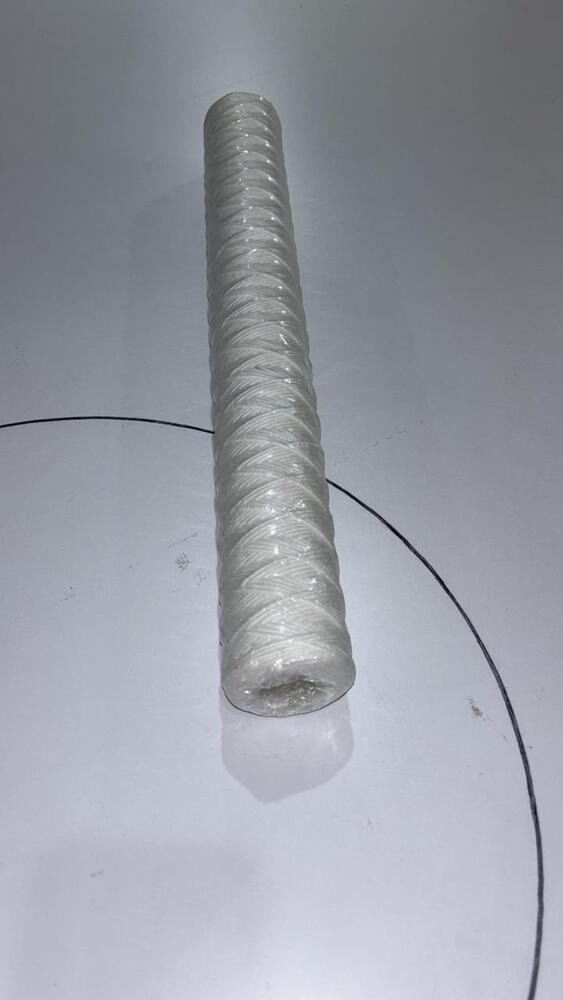

Wound filter cartridge

Wound filter cartridge Specification

Pore Size
1 micron, 5 micron, 10 micron, 25 micron, 50 micron, 100 micron

Pressure
Max 7 kg/cm2 (100 psi)

Filter Media
Wound yarn

Inlet Diameter
Customizable as per requirement

Sealing
Thermo-bonded, Silicone/EPDM/Nitrile O-ring

Filter Rating
1 to 100 microns

Shape
Cylindrical

Outlet Diameter
Customizable as per requirement

Product Type
Depth Filter Cartridge

Material
Polypropylene, Cotton, Glass Fiber, Polyester

Type
Wound Filter Cartridge

Cartridge Style
Double Open End (DOE), Single Open End (SOE)

Diameter
63 mm (2.5 inch), 114 mm (4.5 inch)

Efficiency
Up to 99% particle removal efficiency

Application
Water filtration, Chemical processing, Food & Beverage, Pharmaceuticals

Usage
Removes suspended solids, Rust, Sand, Sediments and Particulates

Color
White

Maximum Flow Rate
25 LPM to 100 LPM (varies by length and diameter)

pH Range
1-13

Operating Temperature
Up to 80C

End Cap Configuration
DOE (Double Open End), SOE (Single Open End)

Compatible Fluids
Water, acids, alkalis, organic solvents

Installation Orientation
Vertical or horizontal

Length
10", 20", 30", 40"

Replacement Cycle
Dependent on contaminant load and flow conditions

Core Material
Polypropylene, Stainless Steel

Wound filter cartridge Trade Information

Minimum Order Quantity
1000 Pieces

Payment Terms
Cash on Delivery (COD)

Supply Ability
500000 Pieces Per Week

Delivery Time
7 Days

Main Domestic Market
All India

About Wound filter cartridge

Filter Medium Material	Microfiber
Usage/Application	Industrial
Material	PP
Length	10-30
Diameter	2-3 inch
Efficiency	95%
Operating Temperature	80 C
Place Of Origin	CHINA

We provide best quality cartridge filter/candle filter in good quality and price.
We provide Water Filter cartridge.

Reliable Filtration for Diverse Applications

Whether you require rigorous water treatment or fine filtration in pharmaceuticals and food & beverage processing, our wound filter cartridge provides consistent performance. Its high dirt-holding capacity and customizable configurations ensure adaptability to various process requirements and operating conditions.

Robust Construction for Demanding Environments

Crafted from high-quality materials such as polypropylene, cotton, glass fiber, or polyester, this cartridge withstands harsh chemicals, high temperatures, and significant pressure. With choices in end cap configuration and elastomeric sealing options, it guarantees leak-free operation and compatibility with multiple fluids.

FAQ's of Wound filter cartridge:

Q: How do I choose the appropriate wound filter cartridge length for my system?

A: The correct cartridge length-10", 20", 30", or 40"-is determined by your filtration system's housing size and the desired flow rate. Longer cartridges generally offer higher flow rates and dirt holding capacity. Consult your system requirements to select the optimal length.

Q: What particles and impurities does the wound filter cartridge remove?

A: These cartridges effectively remove suspended solids, rust, sand, sediments, and other particulates from liquids. Available in various micron ratings, they target particles as small as 1 micron up to 100 microns, achieving up to 99% removal efficiency depending on the selected filter rating.

Q: When should I replace the wound filter cartridge?

A: Replacement intervals depend on contaminant load, flow rate, and application environment. Monitor pressure drop across the filter; significant increases indicate clogging and signal the need for replacement. Regular inspection ensures continued performance and protection of downstream processes.

Q: Where can these cartridges be installed in a system?

A: Wound filter cartridges are suitable for installation in vertical or horizontal orientations within compatible filter housings. Their customizable inlet and outlet diameters enable flexible integration into diverse system designs for industrial, commercial, and municipal applications.

Q: What is the installation process for these cartridges?

A: Installation involves shutting down the filtration system, removing the used cartridge, and inserting the new one with proper sealing (using silicone, EPDM, or nitrile O-rings). Ensure the cartridge matches the end cap configuration (DOE or SOE) and is securely seated before resuming operation.

Q: How does the filter benefit my operation?

A: Using this cartridge improves liquid clarity, safeguards sensitive downstream equipment, and enhances product quality by reliably removing particulates. Its high flow capacity and chemical resistance make it cost-effective for continuous, heavy-duty filtration demands.
